Supercritical fluid extraction with CO2

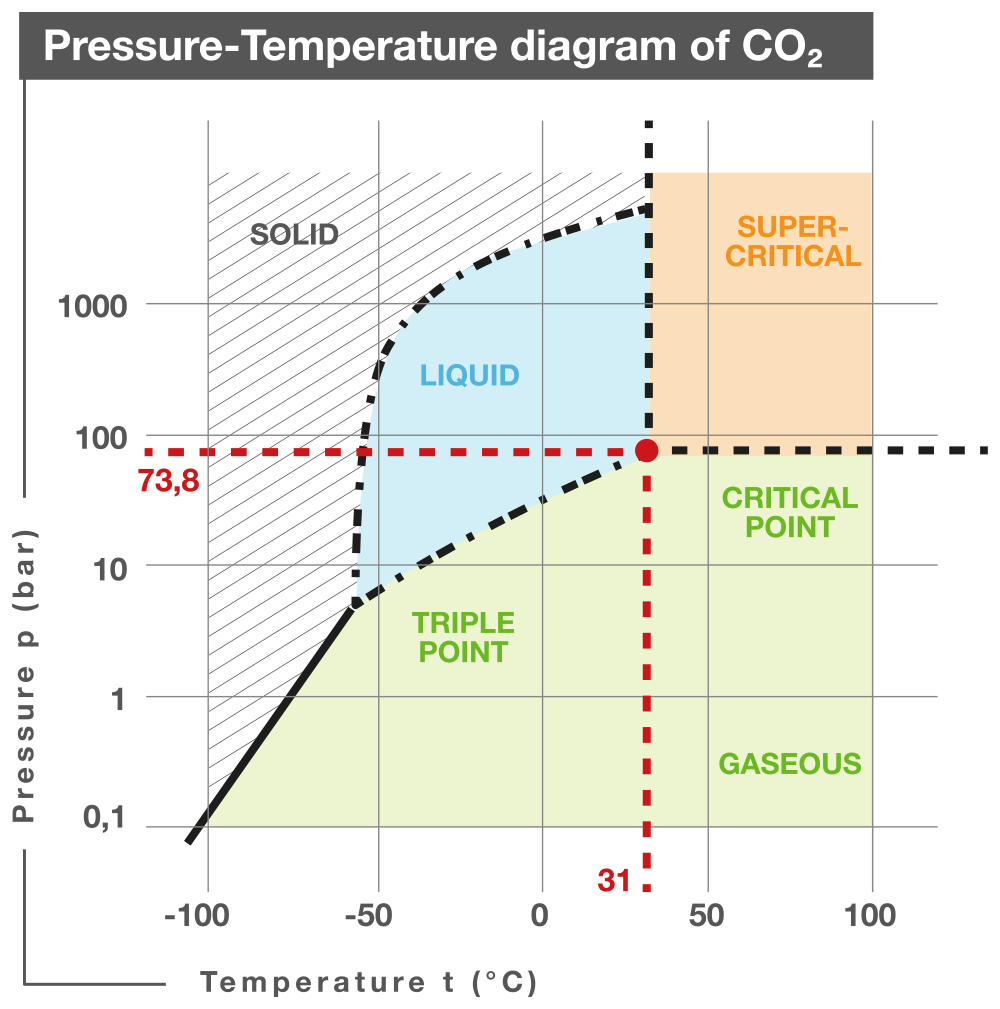

Supercritical CO2 extraction is a sophisticated process utilized extensively in various sectors such as pharmaceuticals, food processing, and cosmetics. This technique involves using carbon dioxide above its critical point (31.1°C temperature and 73 bar pressure) to create a supercritical fluid. This state of CO2 combines the properties of both gas and liquid, making it an excellent solvent for extracting active ingredients without the degradation associated with traditional methods.

Environmental and Operational Advantages

- Non-Toxic and Safe: CO2 is non-toxic and non-flammable, offering a safer alternative to organic solvents used in conventional extraction processes.

- Environmentally Friendly: The process is environmentally benign as CO2 is recycled within the system, significantly reducing waste and eliminating solvent disposal issues.

- Efficiency and Selectivity: The ability to precisely control the temperature and pressure allows for the selective extraction of specific compounds, optimizing yield and purity.

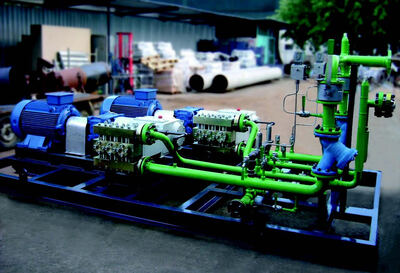

Location: China - Service: SFE CO2 - Pump: Titano 31.20 - Capacity: 1.2 m3/h - Delivery pressure: 320 bar

Peroni's High Pressure Pump Solutions for Supercritical CO2 Extraction

Peroni specializes in the design and manufacturing of high-pressure plunger pumps that are ideally suited for the rigorous demands of supercritical CO2 extraction. With a legacy of engineering excellence, Peroni provides robust solutions that enhance the efficiency and reliability of extraction processes.

Key Features of Peroni Pompe Pumps:

- High Pressure Capability: Peroni pumps are engineered to operate at pressures necessary for maintaining CO2 in its supercritical state, often exceeding 500 bar.

- Durability: Built to withstand the harsh conditions of continuous industrial use, Peroni pumps deliver consistent performance with minimal maintenance.

- Customizable Configurations: Understanding that each extraction setup has unique requirements, Peroni offers customizable pump configurations.



Application-Specific Engineering

- Cooling and Temperature Control: Peroni pumps come equipped with advanced cooling systems to manage the heat generated during the compression of CO2, maintaining system integrity and operational efficiency.

- Material Integrity and Regulatory Consideration: Hydraulic ends utilize materials specifically compatible with CO2 to guarantee sustained operational integrity and the possibility of compliance with FDA standards.

- Minimization of Dead Space: To enhance the volumetric efficiency of the pump, Peroni's design minimizes dead spaces within hydraulic end of the pump. This optimization ensures that more of the pump's volume is used for fluid movement, which enhances the overall efficiency and effectiveness of the extraction process.

Brochure

Download the sector brochure to discover all the applications of our industriail pumps.


Reciprocating pumps

Peroni Pompe’s production range includes Plunger Pumps, Steam Driven Pumps, Process Diaphragm Pumps, Metering Pumps.

Unique product design

Peroni Pompe industrial pumps stand out due to their distinct design attributes.

Worldwide Presence

Global reach, Local support: our worldwide presence ensures unmatched service and spare parts accessibility in strategic location.
